Absolute safety is non-negotiable. Orbit employs redundant optical sensors and a magnetic friction drive. If a tie, sleeve, or hand obstructs the path, the belt stops instantly. No pinch points, no chains, no gears exposed.

Can it adapt to my layout?

Orbit is liquid architecture. It snakes around pillars, climbs inclines, and turns tight corners. Unlike rigid chain conveyors, our modular track system can be reconfigured if you decide to renovate or expand.

Is maintenance complex?

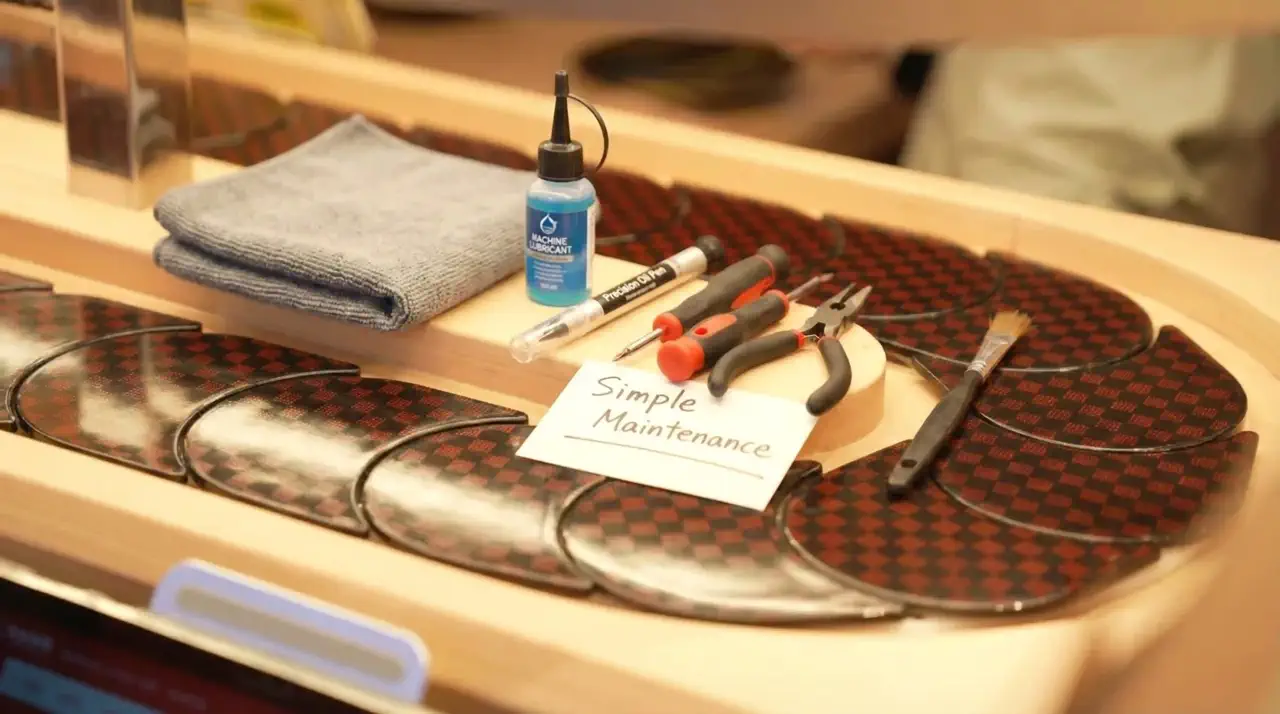

We engineered the headache out of it. Daily cleaning is tool-free—simply lift the magnetic plates. The motor units are modular; in the rare event of a failure, swap a module in 5 minutes without shutting down the whole system.

Can it transport liquids?

Yes. Our 'Smooth-Glide' motion profile eliminates the jerkiness of traditional belts. Serve hot soups, martini glasses, or delicate towers of sashimi with zero spillage.

How does support work?

We stand behind our steel. A comprehensive 2-year warranty comes standard, covering all drive components. Our 24/7 global support network ensures you're never plating alone.

Orbit Rotary Conveyor | The Silent Engine of Culinary Theatre

VISUAL PROOF

Silent Motion Observed.

Experience the seamless flow of the Orbit system. From busy service hours to intimate dining moments, see how it transforms the space.

Technical
Specifications.

EagleMeiX Orbit System // Data Sheet

ENGINEERING STANDARD 4.0

[01] MATERIAL

316LS/S

Construction

Ultra-corrosion-resistant stainless steel monolithic structure.

[02] ACOUSTICS

<45dB

Noise Floor

Magnetic dampening system ensures ghost-quiet operation.

[03] POWER

110-240V

Input Voltage

Global adaptability with intelligent active load scaling.

[04] TORQUE

5KG

Capacity

Consistent torque delivery regardless of plated weight.

[05] VELOCITY

4-6m/min

Variable Speed

Infinite control via haptic feedback interface.

[06] THERMAL

ISOLATED

Architecture

Thermally decoupled brushless drive units.

FIG 1.0 // MECHANICAL ASSEMBLY

The Infinity Link

A modular masterpiece. Every link is individually replaceable, allowing for tool-free maintenance and infinite track expansion capability. The polymer connection points eliminate the need for lubrication.

KEY ADVANTAGE

Zero-downtime hot-swappable modules.

EXPLODED VIEW

DECIBEL ANALYSIS

FIG 2.0 // ACOUSTIC ARCHITECTURE

Ghost Quiet

Engineered silence. The magnetic friction drive eliminates chain clatter, ensuring the system operates below 45dB—quieter than a whisper in a library.

<45dBNoise Floor

FIG 3.0 // POWER INTELLIGENCE

Active Load Scaling

Global adaptability. The power supply unit actively monitors belt resistance and plated weight, adjusting voltage in real-time to optimize consumption and torque.

INPUT: 110-240V (AUTO-SWITCHING)
EFFICIENCY: 94% (PLATINUM RATED)

POWER GRAPH

THERMAL IMAGING

FIG 4.0 // THERMAL ARCHITECTURE

Cold Running

Thermally decoupled brushless architecture. Heat generated by the drive units is channeled away from the service area via dedicated heatsinks, maintaining food safety standards.

ISO-LATEDDrive Core

FIG 5.0 // CIRCULAR ECONOMY

Sustainable Core

Built for the future. 98% of the machine's mass is fully recyclable, with an active take-back program for end-of-life motor units.

98%Recyclability Rating

LIFECYCLE ANALYSIS

UI COMPONENT SET

FIG 6.0 // HUMAN INTERFACE

System OS

No clutter. No confusion. The EagleMeiX OS presents only what is necessary, using universal iconography to transcend language barriers.

HAPTIC FEEDBACK ENABLED
OLED CONTRAST HIGH
OTA UPDATES ACTIVE

EAGLEMEIX AUTOMATIONEND OF DOCUMENT

Operational Foundation.

Built on a bedrock of support. We provide the infrastructure for your success, from installation to daily operation.

Global Logistics

Precision shipping & modular crating. Arrives safe, assembles fast.

Expert Training

On-site certification for your entire staff.

24/7 Command

Real-time remote diagnostics & support.

Lifecycle Maintenance

Proactive schedules & spare parts inventory.

Platinum Warranty

Comprehensive coverage on all drive components.

"We stand behind our steel."

EagleMeiX Global Assurance
